Intelligent microprocessor circuit, professional.
19999 and 1999 counts (dual) LCD displays.
Auto LCR smart check and measurement.
Test range : (ex : F = 1 KHz)
- L : 200.00 uH to 2000.0 H
- C : 2000.0 pF to 2.000 mF
- R : 20.000 to 200.0 M
Series/Parallel modes are selectable.
DCR mode 200.00 to 200.0M
Five test frequency are available:
100Hz / 120Hz / 1KHz / 10KHz / 100KHz
Ls/Lp/Cs/Cp with D / Q / ESR Parameter.
LCD Display with backlight structure.
Power : 9V battery or 9Vdc adapter. (Sold separately)
Optional RS232/USB computer interface & Software.

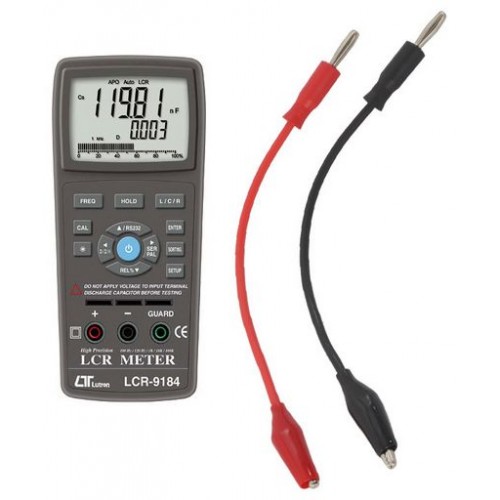

Included: Test lead with alligator clips
